Titanium Polishing & Mechanical Surface Finishing
“Polishing” is often used as a catch-all, but mechanical polishing, brushing, matte blasting and deburring are different processes with different equipment, different consumables and different results. Through our certified partner facilities, specifying the right mechanical finish ensures you only pay for a surface preparation that matches the function of the part.
This page covers mechanical finishing across Grade 1 (UNS R50250 / Werkstoff 3.7025 / ВТ1-00), Grade 2 (UNS R50400 / Werkstoff 3.7035 / ВТ1-0), Grade 5 (Ti-6Al-4V / UNS R56400 / Werkstoff 3.7165 / ВТ6), and Grade 23 ELI (UNS R56407 / Werkstoff 3.7165-ELI / ВТ6С). Chemical processes — pickling and alpha-case removal — are a separate discipline: see descaling, pickling and fabrication requirements when the part has been hot worked or heat treated.

Finish Types
| Finish | What it is | Typically used for |
|---|---|---|

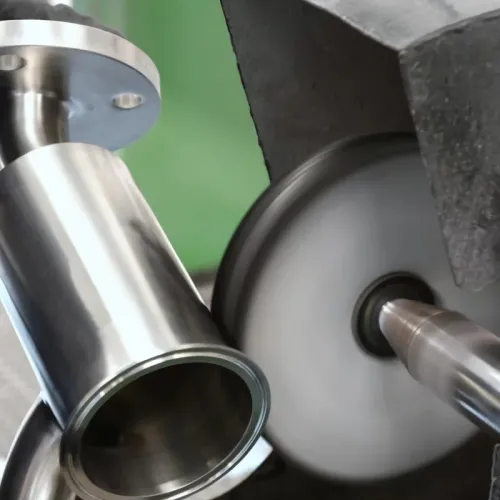

| Mechanical polishing | Progressive abrasive stages to a smooth, reflective face | Motorsport exhaust tubing, fluid-contact surfaces, marine hardware, and mirror-prepped EDC parts |
| Brushing (satin / hairline) | Directional abrasive texture (#180–#400 grit), uniform linear grain | Knife scales & pocket clips, visible instrument panels, architectural trim |
| Matte / bead blasting | Uniform low-gloss texture from dedicated non-ferrous blast media | Non-reflective tactical/EDC surfaces, pre-treatment before coating or electrochemical anodizing |
| Deburring & edge finishing | Removal of burrs, edge breaking (0.1–0.5 mm / 0.004"–0.020"), tumbling | Cut and CNC-machined parts before assembly, handling safety, and fatigue-sensitive marine edges |
Surface roughness (Ra in µm or µin) is confirmed per drawing and order specification, together with the measurement direction and sampling length — an Ra figure without those two is not a complete specification.
Electrochemical Anodizing & Bead-Blasted Pre-Treatments
Mechanical polishing, satin brushing, and non-ferrous glass-bead or ceramic media blasting are the critical pre-treatment stages that govern the final appearance of anodized titanium. Because titanium anodizing grows a transparent oxide film rather than depositing an opaque pigment, the underlying mechanical texture determines both light reflectivity and color saturation:
- Mirror & Satin Polishing Before Color Anodizing: Progressive mechanical polishing produces brilliant, high-lustre interference colors across the
15 V–110 VType III spectrum, while directional satin brushing gives a metallic sheen favored on custom knife hardware and motorsport fasteners. - Non-Ferrous Glass-Bead Blasting: Uniform blasting with dedicated iron-free glass beads or aluminum oxide creates a matte, glare-free micro-texture that diffuses light evenly and improves wear resistance.
- Explore Anodizing Options: Clients requiring wear-resistant gray/anti-galling conversion coatings (Type II) or voltage-controlled interference color anodizing (Type III, 15 V–110 V) can review process details on our Titanium Anodizing & Bead Blasting page and preview voltage-to-color behavior using our interactive Anodizing Voltage & Color Explorer.
Titanium-Specific Controls
Titanium is not stainless steel, and two points matter more here than in general metal finishing:
- No ferrous media, ever. Iron particles embedded in a titanium surface become galvanic corrosion initiation sites and will fail a pickling or passivation check later. Across our partner network, abrasives, belts, wheels and blast media are titanium-dedicated; blasting uses alumina, glass bead or ceramic media — never steel shot or grit that has been used on carbon steel.
- Titanium dust is combustible. Fine particles from dry grinding, polishing and blasting are a recognized combustible-metal dust hazard. Extraction, wet collection and housekeeping for titanium are kept strictly separate from ferrous dry collection systems.
Where the part has been hot worked, heat treated or pickled beforehand, mechanical finishing does not substitute for verifying alpha case removal and hydrogen content — polishing changes the surface appearance without changing what is underneath it. Every shipment is accompanied by a Material Test Certificate (MTC) with heat-lot traceability and Certificate of Conformance (CofC).
What to Specify
To quote a finish accurately rather than guess at one, send us:
- Target Ra (in
µmorµin, and whether it applies to the whole part or named datum surfaces) - Finish type — mirror polished, brushed satin, matte bead-blasted, or deburr/tumble only
- Grain direction, for brushed finishes
- What happens next — Type II/III anodizing, PVD coating, TIG welding, or final assembly
- Whether the part is a fluid-contact, subsea, or high-cleanliness item, which changes ultrasonic cleaning and packaging
If you are unsure which finish suits the application, describe the function of the surface and we will propose the right preparation route. Tolerances and lead times are confirmed per drawing and order specification.
