An Introduction to High-Performance Titanium Fasteners
Titanium nuts, bolts, screws, and washers are the pinnacle of fastener technology. They are not merely pieces of hardware but are engineered components that provide a unique and powerful combination of properties: the strength of steel at approximately half the weight, coupled with absolute immunity to corrosion in most environments.
This remarkable profile makes titanium fasteners the essential choice for applications where performance, safety, and long-term reliability are non-negotiable. By replacing traditional steel or stainless steel fasteners, engineers can significantly reduce overall weight, eliminate the risk of rust and corrosion-related failures, and enhance the performance of their designs. From the racetrack to the deep sea, titanium fasteners provide a competitive edge and unmatched durability.

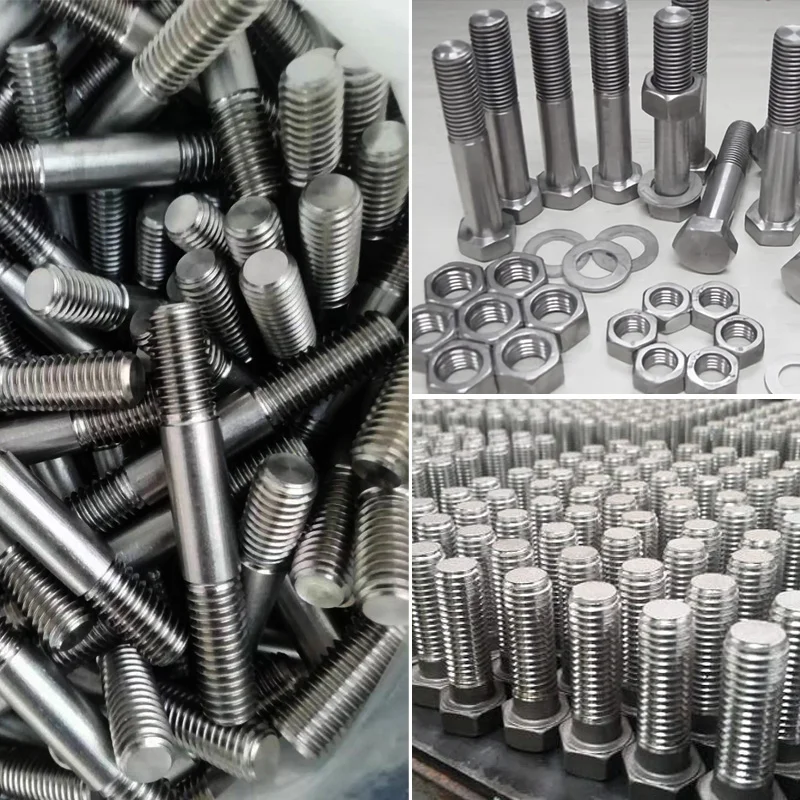

Available Fastener Types & Specifications
We offer a comprehensive range of standard and custom titanium fasteners to meet international standards and your specific project needs.
- Product Types:
- Bolts: Hex Head Bolts, Flange Bolts, Carriage Bolts.
- Screws: Socket Head Cap Screws (Allen), Button Head, Flat Head Countersunk.
- Nuts: Hex Nuts, Flange Nuts, Nylon Lock Nuts (Nyloc).
- Washers: Flat Washers, Spring Lock Washers.
- Threading:
- Metric: M3 to M24 and larger.
- Imperial: Standard UNC (Unified National Coarse) and UNF (Unified National Fine) threads.
- Standards: Manufactured to DIN, ISO, ANSI/ASME, and other international specifications.
- Customization: We can manufacture custom fasteners to your exact drawings and specifications.
Common Grades for Titanium Fasteners
The grade of titanium is crucial as it determines the fastener’s strength and application suitability.
| Grade | Common Name(s) | Key Characteristics & Features | Typical Fastener Applications |
|---|---|---|---|
| Grade 5 | Ti-6Al-4V | High Strength. The most common grade for fasteners. Offers an exceptional strength-to-weight ratio, far exceeding steel in this regard. | Aerospace structures, motorsport (engine, chassis, brakes), high-performance bicycles, load-bearing industrial applications. |
| Grade 2 | CP Ti Grade 2 | Superior Corrosion Resistance. Moderate strength with excellent ductility and weldability. Used where corrosion immunity is the primary concern. | Marine equipment, chemical plant fixtures, architectural attachments, non-load-bearing applications. |
| Grade 7 | Ti-0.2Pd | Premium Corrosion Resistance. Similar to Grade 2 but with enhanced resistance to acids and crevice corrosion due to palladium. | Fasteners for specialized chemical reactors, desalination equipment, and highly aggressive environments. |
Example Applications of Titanium Fasteners
Titanium fasteners are chosen when standard materials are not sufficient to meet the performance demands.
Motorsport & High-Performance Automotive
- Unsprung Weight Reduction: Using titanium bolts for wheels (lug nuts), brakes, and suspension components dramatically reduces unsprung mass, improving handling and responsiveness.
- Engine Components: Titanium bolts are used to secure engine heads, exhaust manifolds, and internal components, reducing reciprocating mass and withstanding high temperatures.
Aerospace & Defense
- Structural Assembly: Every kilogram saved is critical. Titanium fasteners are used throughout airframes, satellites, and engine assemblies to reduce weight without compromising strength.
- Non-Magnetic Applications: Titanium’s non-magnetic nature is vital for fasteners used near sensitive electronic guidance and detection systems.
Marine & Naval
- Above and Below Waterline: Immune to saltwater corrosion, titanium bolts are a “fit and forget” solution for securing deck hardware, masts, propellers, and underwater equipment on yachts, ships, and submarines.
- Offshore Rigs: Provide long-term, maintenance-free fastening in the highly corrosive splash zone of offshore oil and gas platforms.
High-End Bicycles & Sporting Goods
- Frame & Component Assembly: Used to secure stems, seat posts, bottle cages, and disc brake rotors, contributing to a lighter, faster, and rust-proof bicycle.
- Performance Equipment: Found in high-end sporting gear where weight and strength are critical factors.
