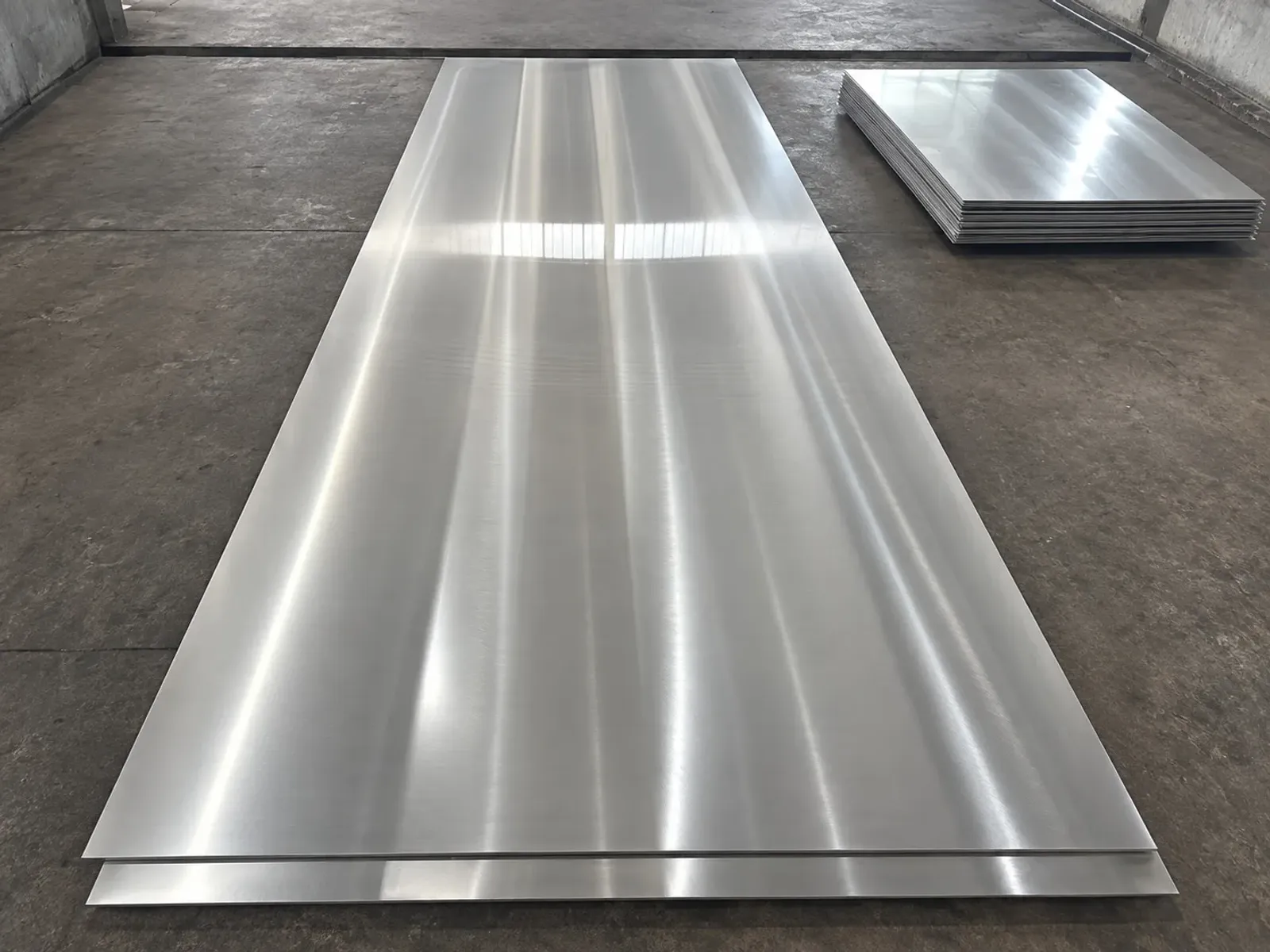

Illustrative metal-surface context; this is not the Ti60 coating or a study specimen.
A study published on October 5 reports a laser-clad Ti-Hf-Mo-Ta-Nb-B coating on Ti60 titanium alloy with a dry-wear rate of 6.28 × 10−4 mm³/(N·m), versus 6.57 × 10−3 for the uncoated substrate. That is about 9.6% of the substrate value under the paper’s 45 N laboratory protocol. The result is useful for coating-route screening; it is not evidence that an aerospace component has passed fatigue, oxidation, thermal-cycle or production qualification.
- Dry wear: roughly one-tenth the substrate rate in the reported 45 N test, not a universal tenfold service-life gain.
- Saltwater electrochemistry: a more positive corrosion potential and lower current density in 3.5 wt.% NaCl, not a field-life result.
- Next decision: reproduce the coating on representative geometry and test the actual failure modes before qualification.
What the researchers measured
The paper reports a coating about 1.6–2.4 mm thick. Its dry-friction test used a 45 N load, a baseplate speed of 140 r/min and a loading-head speed of 60 r/min. The test ran for five minutes against silicon-carbide abrasive paper and was repeated three times. Those conditions define the result: the coating wear rate was 6.28 × 10−4 mm³/(N·m), while Ti60 was 6.57 × 10−3.
The coating also averaged HV0.1 834.9, compared with HV0.1 343.6 for the substrate. The paper reports 29.27 vol.% of a high-entropy diboride phase and connects the harder microstructure with the lower wear rate. That mechanism is a research interpretation under these specimens and tests; it does not convert microhardness into fatigue strength or impact tolerance.
The wear result is strong—and test-specific
Dividing the two reported wear rates gives about 0.0956. “One-tenth” is therefore a fair summary of this comparison. It would not be fair to call it a tenfold improvement for every aerospace contact. Fretting, erosion, lubricated sliding, debris behavior, edge loading and thermal exposure can produce different damage mechanisms.
For a Ti60 component program, the paper can justify a controlled follow-up test matrix. It cannot select a coating for a drawing by itself. The next comparison should match contact pressure, motion, counterbody, temperature and environment to the intended part, and should include substrate and any incumbent treatment.
Better electrochemical indicators are not service life
In 3.5 wt.% NaCl, the coating’s corrosion potential was −0.3275 V versus −0.4516 V for Ti60. Its corrosion current density was 4.1801 × 10−6 A/cm² versus 7.4039 × 10−6. Within that setup, the coating had the more favorable pair of electrochemical indicators.
Those numbers do not answer pitting, crevice, galvanic, salt-fog, stress-corrosion or long-duration exposure questions. Nor do they establish behavior after wear has locally removed or cracked the coating. The useful next step is to treat the electrochemical result as a screening signal and design environment-specific durability tests.
What qualification still needs

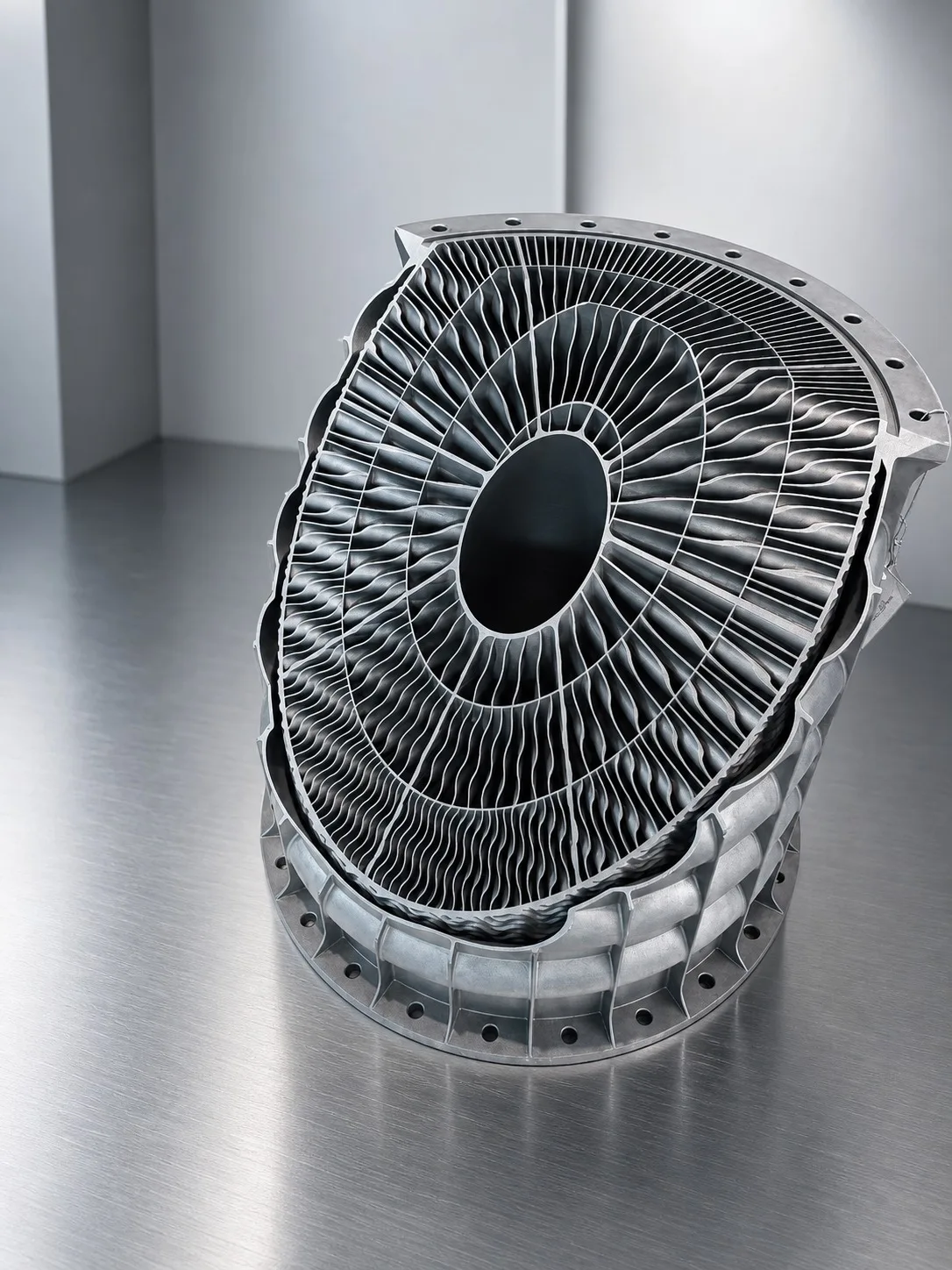

Illustrative complex-component geometry; this is not a Ti60 part or a study specimen.
The paper’s 1.6–2.4 mm range makes process transfer a central issue. A production route would need evidence for dilution, residual stress, cracking and porosity, thickness uniformity, machining allowance and repeatability across representative geometry. It would also need to show that the coating does not reduce fatigue performance or create an unacceptable interface failure mode.
For high-temperature Ti60 applications, oxidation and thermal-cycle testing are separate gates. For repair or overhaul use, removal limits, rework, inspection and acceptance criteria also have to be defined. Until those records exist, the defensible conclusion is narrow: this is a promising laboratory comparison that supports further testing, not a qualified aerospace coating or a procurement change.
Sources
- X. Li et al., “Wear and Corrosion Properties of Laser-Cladding Ti-Hf-Mo-Ta-Nb-B Coating on Ti60 Titanium Alloy,” Coatings 16 (2026) 1183, published October 5, 2026: https://doi.org/10.3390/coatings16101183
