The Procurement Trap: Specifying “Coating Thickness in Microns”
In industrial chlor-alkali production, electroplating, water treatment, copper foil electrowinning, and cathodic protection, technical purchase specifications routinely include clauses like:
“MMO coating thickness must be at least 15 µm (or 20 µm). Supplier must submit paint-gauge thickness inspection reports.”
While intuitive for conventional protective paints or electroplated nickel, applying this logic to mixed metal oxide (MMO) anodes is one of the most common and costly procurement traps in electrochemical engineering.
Plant operators frequently encounter a baffling scenario: the inspection certificate certifies a 25 µm thick coating, yet within 3 to 6 months in the cell, cell voltage surges from an initial 3.2V to over 5.8V, burning out busbars and forcing an emergency plant shutdown.
Here is the metallurgical and physical reality behind MMO coatings.
The Physical Reality of Mixed Metal Oxide (MMO)
An MMO coating is fundamentally different from a barrier paint film or an electroplated metallic deposit:
- A Micro-Porous Catalytic Matrix: MMO coatings are produced by applying liquid organometallic salts (chlorides of Ruthenium, Iridium, Tantalum, or Titanium) onto an etched titanium substrate, followed by thermal oxidation in an industrial furnace at 400°C–500°C. This cycle is repeated 15 to 25 times. The resulting structure is not a smooth, solid sheet, but a heavily cracked, mud-flat morphology featuring nano-to-micro pores that maximize catalytic electroactive surface area.
- Conductivity Ruins Gauge Accuracy: Standard eddy current coating thickness gauges measure the electromagnetic gap between a conductive substrate and an insulating surface film. Because MMO coatings are semiconductor metal oxides with high electrical conductivity, probe signals fluctuate wildly against the conductive titanium substrate. Reported micron values routinely carry 30% to 60% error margins.
- “Bulk Thickness” Masks Precious Metal Dilution: Because Ruthenium (Ru) and Iridium (Ir) are extraordinarily expensive, unscrupulous suppliers add disproportionate quantities of inexpensive titanium dioxide ($TiO_2$) or tin dioxide ($SnO_2$) precursors. This inflates physical coating thickness up to 25–35 µm while dropping active noble metal content below critical thresholds. In aggressive electrolytes, the non-catalytic bulk quickly erodes, leading to catastrophic anode passivation.
The True Engineering Benchmarks: Precious Metal Loading (g/m²) & ALT
Global engineering contractors and Tier-1 electrochemical plants reject micron thickness as a primary pass/fail criterion. Instead, they enforce two non-negotiable quality metrics:
1. Noble Metal Surface Loading (g/m²)
Active noble metal content per square meter directly governs operating overpotential, current efficiency, and service lifespan.
| Electrochemical System | Recommended MMO Formulation | Typical Industrial Service | Target Noble Metal Loading | Expected Service Life |
|---|---|---|---|---|
| Chlorine Evolution | Ruthenium-Iridium-Titanium ($RuO_2-IrO_2-TiO_2$) | Chlor-alkali, sodium hypochlorite generators, ballast water, seawater electrolysis | 8 – 12 g/m² (15–20 g/m² for high current) | 2 – 5 Years |
| Oxygen Evolution | Iridium-Tantalum-Titanium ($IrO_2-Ta_2O_5-TiO_2$) | Acidic copper plating, copper/aluminum foil making, electrowinning (Zn/Ni), industrial wastewater COD reduction | 12 – 25 g/m² (30–40 g/m² for extreme duty) | 3 – 8 Years |
| Ultra-Long Impressed Current | Platinized Titanium / Niobium ($Pt/Ti$, $Pt/Nb$) | Deep-well groundbeds for cathodic protection (CP), gold electroplating | Pt 2.5 – 5.0 µm / 20–50 g/m² | 10 – 25 Years |
Verification Method: Certified manufacturers verify loadings via calibrated X-Ray Fluorescence Spectrometry (XRF) across a 9-point grid, combined with high-precision micro-balance gravimetric measurements before and after thermal baking cycles.
2. Accelerated Life Testing (ALT)
Because industrial anodes are engineered to operate for 3 to 10 years at normal current densities ($1,000 - 3,000\ A/m²$), plants cannot wait years to qualify a production run. Quality verification relies on standardized Accelerated Life Testing (ALT) per NACE TM0108:
- Test Electrolyte: $1.0\ mol/L\ H_2SO_4$ (strongly acidic medium);
- Extreme Stress Current: $10,000 - 20,000\ A/m²$ (5x to 10x normal operating levels);
- Failure Criterion: Cell voltage surge exceeding 5V above baseline;
- Pass Threshold: High-reliability oxygen evolution MMO anodes must achieve an ALT duration $\ge 100\ hours$. Based on electrochemical charge accumulation models, an ALT result of 100 hours reliably correlates with 3 to 5 years of uninterrupted industrial service under nominal loads.
Substrate Recoating: Slashing CAPEX by 40%–60%
When MMO anodes reach end-of-life, discarding complete anode assemblies as scrap metal is a tremendous waste of high-value titanium.
Titanium Substrates Retain 90%+ Residual Value:
- Substrate Specification: Industrial MMO anodes use ASTM B265 Grade 1 or Grade 2 commercially pure titanium. (Note: Grade 5 / Ti-6Al-4V alloy must never be used as an anode substrate due to galvanic micro-corrosion of aluminum and vanadium phases in acidic media).

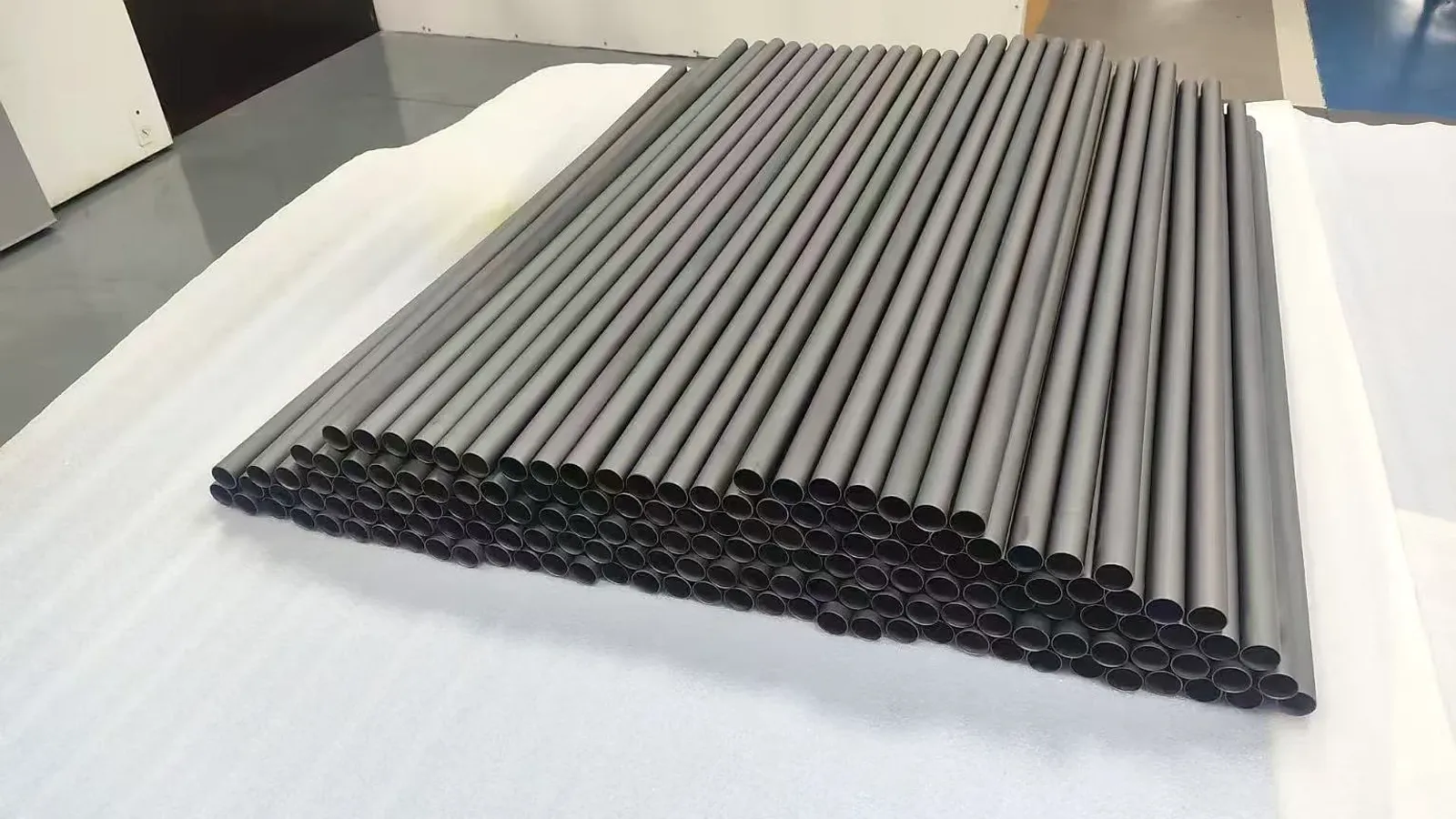

- The Recoating Procedure: Intact titanium mesh, sheet, or tubular structures undergo molten caustic / hot oxalic acid stripping to dissolve residual depleted oxides down to virgin titanium. After controlled micro-grit blasting and surface activation, 15 to 20 cycles of fresh precursor application and thermal sintering restore full electrochemical efficiency.
- Economics: Recoating eliminates plate rolling, CNC laser profiling, hydraulic forming, and specialized TIG welding expenses. A recoated anode assembly costs 40%–60% less than a new unit while offering 100% equivalent operational longevity. Substrates can typically be recoated 2 to 4 times over their lifecycle.
Practical Checklist for Procurement Engineers
To eliminate “thickness fraud” and ensure long-term cell reliability:
- Delete Micron-Only Specifications: Replace “15 µm coating thickness” with “Minimum Noble Metal (Ru/Ir) loading $\ge 12\ g/m²$, verified by XRF testing”.
- Mandate Complete MTC 3.1 Traceability: Demand EN 10204 3.1 material test certificates documenting virgin ASTM B265 Gr.1/Gr.2 substrate chemistry, precise noble metal mass loading, and batch ALT accelerated life test records.
- Declare Contaminants Upfront: Disclose trace impurities in your process stream—especially fluorides ($F^-$), chlorides ($Cl^-$), and dissolved organics. Fluoride concentrations above 10 ppm rapidly dissolve passivated titanium under-layers, requiring specialized protective barrier interlayers or fluoride-resistant coating formulations.
- Implement a Recoating Protocol: Establish a return-and-recoat cycle with your supplier for standard electrolytic cells, tubular strings, and mesh baskets to capture long-term lifecycle savings.
