New Femoral Fixation Study Adds a Load-Model Gate to Ti-6Al-4V Selection

Generic titanium plate context; not the study implant, alloy proof, or device-selection evidence.

A September 12 finite-element study compared Ti-6Al-4V and SS 316 L femoral fixation systems under two otherwise paired loading models. Its useful result is not a winner between alloys. It is a model-risk test: omitting muscle loads changed several outputs as much as, or more than, changing the fixation material, so material down-selection should wait until both deltas are shown on the same basis.

• Stress sensitivity: Removing muscle loads increased modeled femur, plate and screw stresses by 19.8% to 92.1%, depending on material and component.
• Metric dependence: The load-model effect was small relative to the material effect for IFS level, but large for several stress outputs; there is no single universal error percentage.
• Selection boundary: The study used one subject, one 4 mm gap, bonded interfaces and static standing, without direct cadaveric or strain-gauge validation.

What the paired models actually changed

The authors used one left-femur CT from a 34-year-old man, inserted a 4 mm transverse mid-shaft gap, and modeled a 10-hole locking plate with six screws. Both Ti-6Al-4V and SS 316 L systems used the same geometry. The musculoskeletal loading model (MLM) included personalized muscle forces plus hip and knee joint forces and moments. The simplified loading model (SLM) removed the muscle loads while retaining the joint inputs. That pairing is the study’s strongest feature: within each material, the difference isolates the modeled muscle-load contribution.

For SS 316 L, SLM produced femur, plate and screw stresses that were 92.1%, 19.8% and 20.2% higher than MLM. For Ti-6Al-4V, the corresponding increases were 67.9%, 20.1% and 43.7%. The spatial stress pattern remained similar, but its magnitude changed. That distinction matters: the model did not move the hotspot to a new component; it changed the predicted load-sharing level.

The study also reports interfragmentary strain (IFS) at the cortex opposite the plate and at the plate side. Omitting muscle loads increased far/near IFS by 24.4%/15.0% for SS 316 L and 24.2%/13.2% for Ti-6Al-4V. The often-quoted 24.4% is therefore one maximum paired IFS error in this model, not a universal FEA error and not the material difference.

Compare the error budget before comparing materials

The same paper lets a reviewer put the loading-model delta beside the material delta. Under MLM, switching from Ti-6Al-4V to SS 316 L changed femur, plate and screw stresses by -24.7%, -0.4% and +0.9%. Under SLM, the corresponding changes were -13.8%, -0.6% and -15.7%.

Positive load-model values mean SLM was higher than MLM. Material values use SS 316 L relative to Ti-6Al-4V under the named model. For femur and plate stress, the load-model delta was larger than the matched material delta. Screw stress was more conditional: the load-model effect was especially large for Ti-6Al-4V, while the material direction changed with the loading model.

IFS tells a different story. Ti-6Al-4V IFS exceeded SS 316 L by roughly 83% to 90% under matched loading, whereas the omission-of-muscle effect on IFS was 13.2% to 24.4%. So the model assumption did not dominate every endpoint. The correct review question is metric-specific: for the endpoint used to justify selection, how large is the modeling delta beside the material delta?

One sentence in the paper conflicts with the paired results

The current Article in Press contains an important wording conflict. Its abstract, Results, numerical percentages and conclusion say that omitting muscle loading—or using SLM—overestimated stress and IFS. One Discussion sentence instead says the musculoskeletal model overestimated femur, plate and screw stresses. The following sentences immediately assign the reported overestimation percentages to ignored muscle loading.

The paired numbers resolve the direction for this article: SLM is higher than MLM for the listed stress and IFS results. A technical review should preserve the conflicting sentence in its source notes, not repeat it as a second valid interpretation. Because the publisher labels this an early citable version that may be replaced by a final edited version, the wording should be rechecked when the Version of Record appears.

What this study can support

The paper can support a sensitivity audit for computational evidence. Before accepting a Ti-6Al-4V-versus-SS 316 L comparison, request a table that holds geometry and endpoint constant and reports:

1. the result with and without the chosen muscle-load representation;
2. the material difference under each matched loading model;
3. the exact percentage denominator and direction;
4. any change in ranking or safety margin; and
5. the evidence used to validate the applied loads and interfaces.

This separates two questions that are often collapsed: “Did the material assignment change the result?” and “Would the result survive a more realistic loading model?” A material delta that is smaller than the modeling delta is not necessarily false, but it is not yet a stable selection argument.

What remains outside the evidence

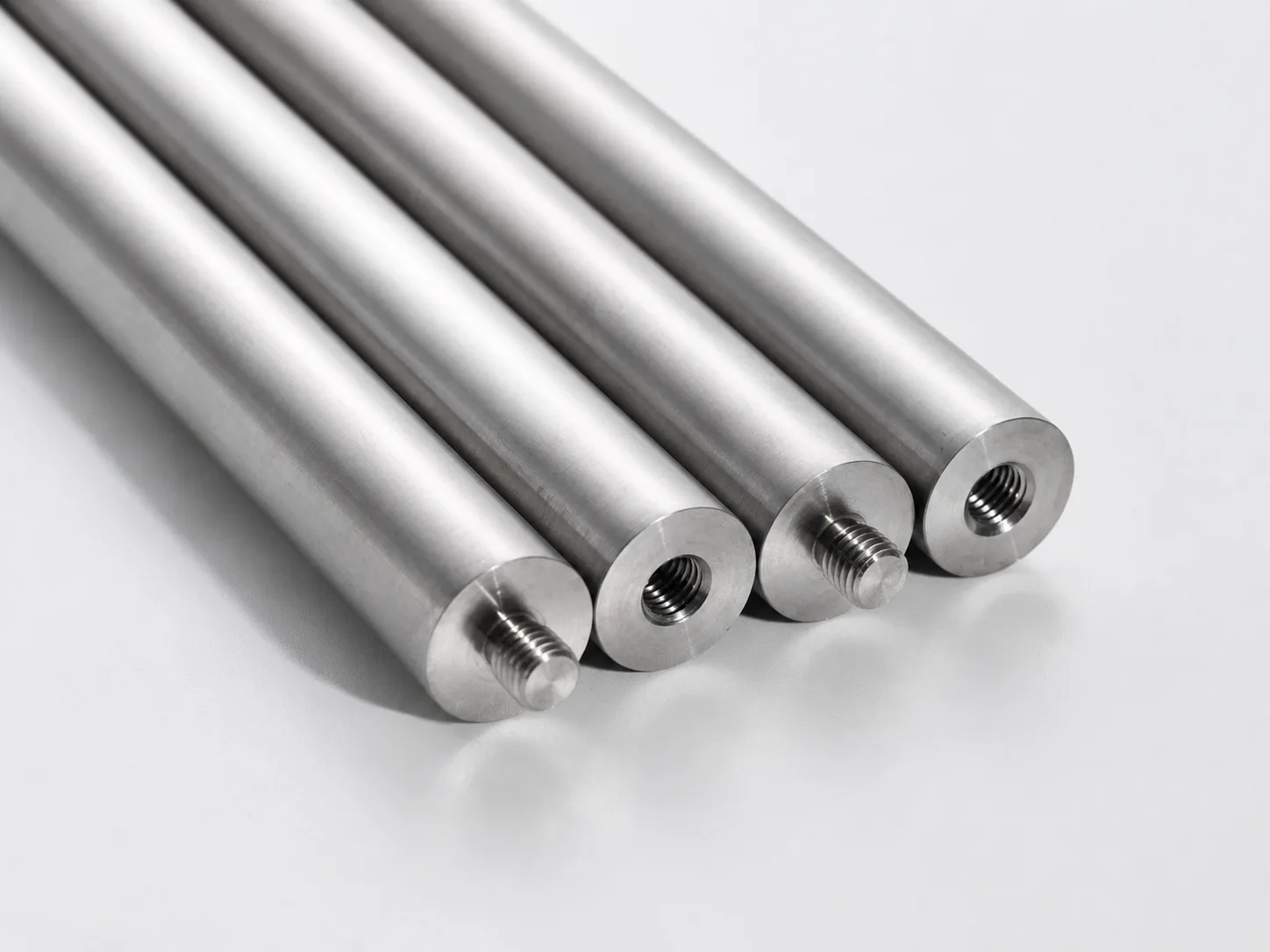

Generic threaded-component geometry; not an orthopedic screw or study specimen. Visible geometry does not establish the modeled interface or load case.

The simulation represents one anatomy, one 4 mm transverse gap and static double-leg standing. Bone was homogeneous, isotropic and linearly elastic; plate-screw and bone-screw interfaces were fully bonded. The paper notes that bonded interfaces can overestimate construct stiffness and underestimate local stress concentrations and micromotion. It did not directly validate the construct with cadaveric tests or strain gauges.

Those limits block a direct procurement or clinical instruction. The model does not test cyclic fatigue, gait, stair climbing, sit-to-stand loading, corrosion, surface condition, manufacturing variability, specification conformance or clinical outcomes. The authors’ closing preference between materials is therefore a hypothesis within this computational setup, not a release rule for a device or a purchase specification.

Before material down-selection, challenge the result across multiple patient geometries, contact assumptions and relevant functional cycles, then compare it with bench, cadaveric or other direct validation. Separately verify the production material state and the applicable device, regulatory and acceptance requirements. These are recommended evidence controls, not obligations created by the paper.
