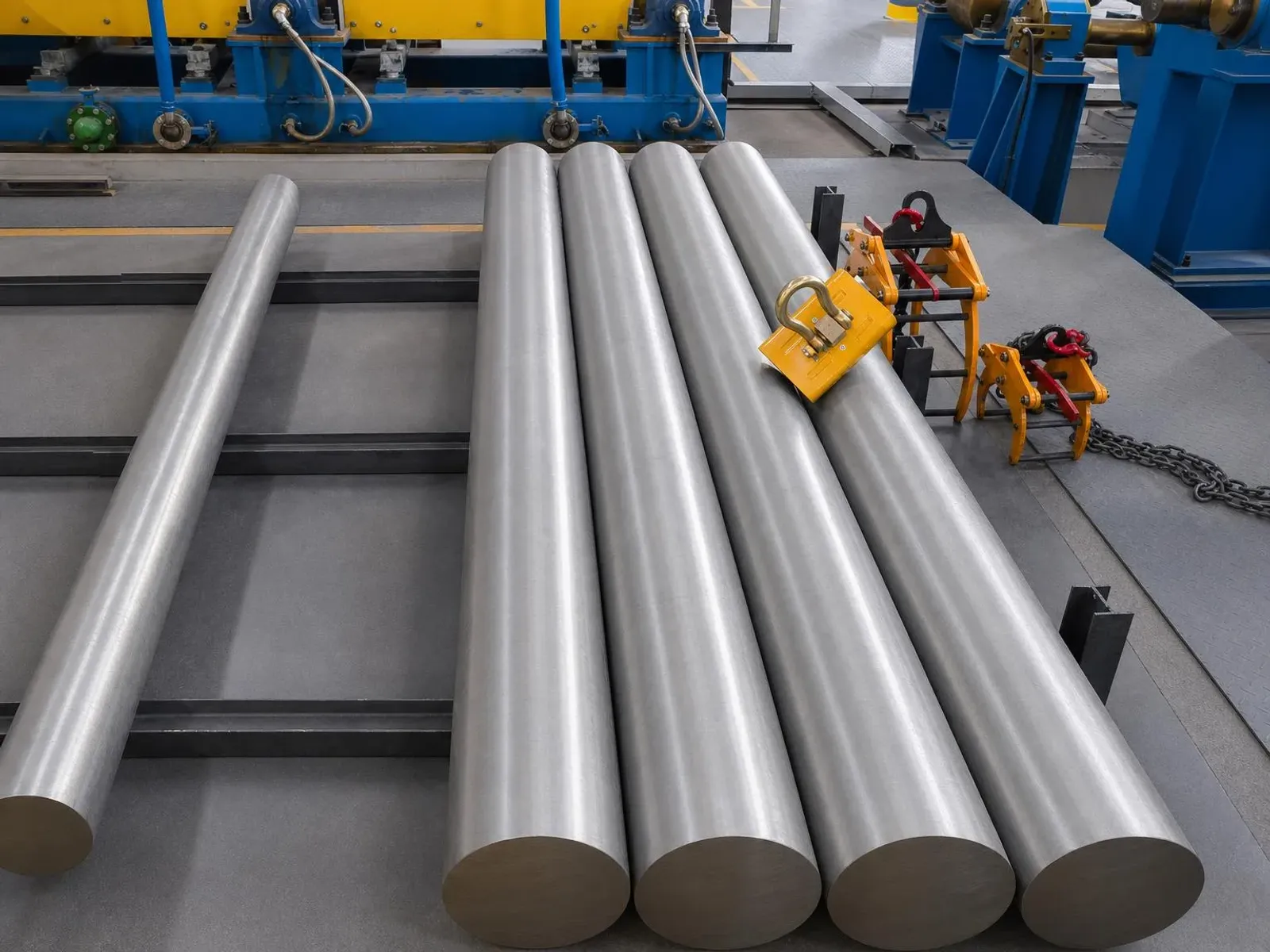

Generic metal-material handling context; the grade, heat, dimensions and processing history are not identified by the image.
The 700 °C condition in a new VT1-0 waffle-die study produced the highest mean microhardness of the four tested specimens. It did not establish 700 °C as an industrial processing window. Each temperature had one independently deformed specimen, while the reported scatter came from repeated indents within that specimen. The study is therefore useful for choosing the next experiment, not for setting a production or acceptance limit.
For titanium processors, laboratories and technical buyers, the important result is the mismatch among the measured signals. Temperature, optical grain size, diffraction breadth and microhardness did not move in one simple direction. That makes the paper a compact example of why a hardness maximum cannot stand in for a validated thermomechanical route.
What the experiment actually compared
The researchers used VT1-0 commercially pure titanium, described as close to ASTM Grade 2. Rectangular material from 50 mm hot-rolled plate was pressed in a periodic “waffle” relief die. The four conditions were 25, 500, 600 and 700 °C. Each specimen received two strokes at 10–11 tonf, remained under load for a total of 1–2 seconds, was air cooled and received no separate post-deformation anneal.
The paper measured Vickers microhardness, optical structure and X-ray diffraction after processing. Its main condition-by-condition numbers are:
| Deformation temperature | Mean HV0.5 ± within-specimen SD | Indents, n | Optical grain size | α-Ti (101) FWHM |
|---|---|---|---|---|
| 25 °C | 175.8 ± 14.1 | 50 | 36.5 μm | 0.714° |
| 500 °C | 176.0 ± 9.0 | 50 | 21.5 μm | 0.463° |
| 600 °C | 161.7 ± 11.2 | 37 | 24.9 μm | 0.584° |
| 700 °C | 184.5 ± 10.8 | 30 | 22.5 μm | 0.738° |
Figure 3 maps the reported optical grain sizes to 25, 500, 600 and 700 °C as 36.5, 21.5, 24.9 and 22.5 μm, respectively. The paper also reports 36.5 μm for the initial material. XRD retained a single α-Ti phase in all tested states; the authors reported no peaks assigned to β-Ti, oxides, hydrides or another secondary phase.
The four signals do not form one monotonic rule
If temperature alone controlled a single response, the measurements might be expected to rise or fall together. They did not. Mean hardness was nearly unchanged between 25 and 500 °C, dropped at 600 °C and reached its highest value at 700 °C. Among the three elevated-temperature specimens, optical grain size remained within 21.5–24.9 μm; the 25 °C value was 36.5 μm. Meanwhile, the fitted (101) diffraction width was smallest at 500 °C and largest at 700 °C.
That combination does not identify one mechanism. The paper’s line-profile method did not separate broadening caused by coherent-domain size from microstrain or other contributions. It therefore cannot convert the FWHM values into confirmed dislocation density, subgrain size or recrystallization state. Likewise, the optical images describe morphology but do not prove recovery or recrystallization.
The defensible synthesis is narrower: the tested deformation-and-air-cooling schedule yielded different structural indicators at different conditions. Possible competition between deformation strengthening and thermally activated softening is a hypothesis consistent with the pattern, not a mechanism demonstrated by this experiment.
Why 30–50 indents are not 30–50 process repeats
Table 1 reports 30 to 50 hardness indents for each temperature, distributed across five zones. Those measurements help describe spatial variation inside one polished specimen. They do not estimate how another independently heated and pressed specimen would behave.
For every temperature, the number of independently deformed specimens was N = 1. The ± values therefore represent within-specimen indentation scatter, not between-run reproducibility. No hypothesis test established that the difference between the 600 and 700 °C specimens was a repeatable temperature effect.
This distinction is decisive for process transfer. A production window is expected to tolerate ordinary variation in material heat, furnace history, transfer time, deformation and cooling. One specimen per condition cannot estimate those sources of variation, even when that specimen carries many measurement points.
What 700 °C does—and does not—justify

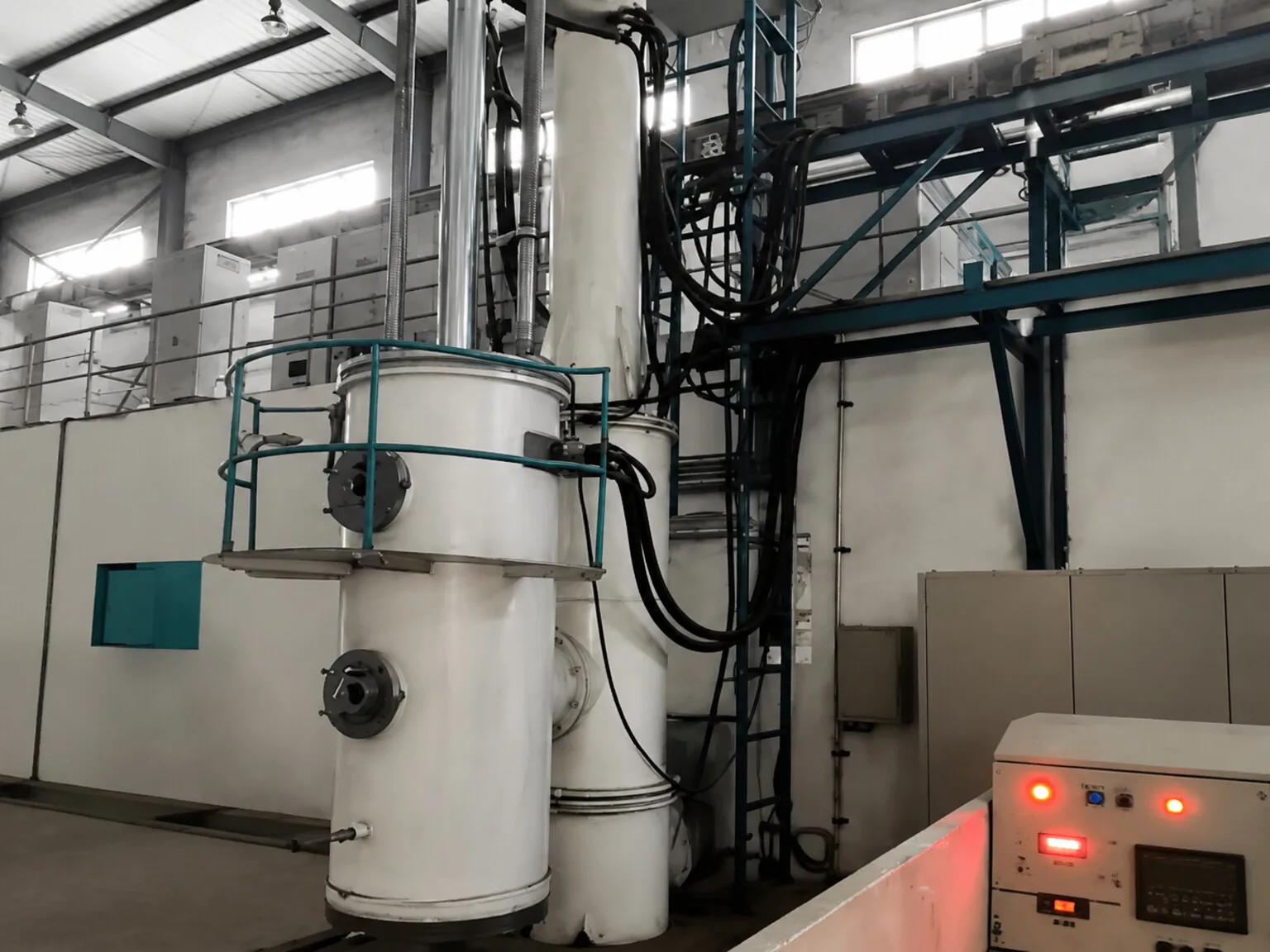

Generic furnace context; the material, temperature and processing cycle are not identified by the image.
The 700 °C specimen justifies keeping that condition in a replicated follow-up matrix. It also justifies comparing it closely with 600 °C, where the lowest mean hardness was measured. The separation is large enough to be worth investigating, but the study cannot say whether it will persist across new specimens or heats.
It does not justify a release temperature, a universal optimum or a property ranking for real components. The paper specifically identifies tensile strength, ductility and wear resistance as properties still requiring evaluation. The study also did not resolve local strain or strain rate across the non-uniform waffle geometry, and the final structure includes any changes that occurred during air cooling. The nominal strain-rate estimate was not obtained from time-resolved deformation measurement.
For an industrial transfer study, first replicate each condition with independent deformation runs and material heats. Record actual specimen temperature, transfer time, load–displacement history, strain and strain rate; control cooling; sample both the valley and higher-deformation regions; characterize crystallographic texture; and validate the response at full-part scale. Then add the properties that govern the intended part—at minimum tensile strength and ductility, and fatigue where cyclic service matters. The number of repeats should be chosen from the effect size and variability the program needs to resolve, not borrowed from the indent count in this paper.
The study’s practical value is thus specific: it identifies a non-monotonic response worth testing and shows exactly where the current evidence stops. For procurement or qualification, 700 °C is a candidate condition, not a specification.
Sources
- T. Syzdykov et al., Microstructure and Mechanical Response of Commercially Pure Titanium VT1-0 After Short-Term Hot Deformation, Inorganics 14 (2026) 255; published 30 September 2026; accessed 1 October 2026.
