Titanium Wires

An Introduction to High-Performance Titanium Wires

Titanium wire is a highly versatile and technologically advanced material, prized for its unique combination of high strength, low density, and outstanding corrosion resistance. Its strength-to-weight ratio is one of the highest among all metallic elements, making it an essential component in industries where performance and reliability are non-negotiable.

Our titanium wires are manufactured through a meticulous process of drawing and annealing to achieve precise dimensional tolerances and superior surface finishes. From the deep oceans to the vastness of space, titanium wire provides a dependable solution for the most demanding engineering challenges. It is inherently biocompatible, non-toxic, and resistant to chlorides, saltwater, and a wide range of industrial chemicals, ensuring long-lasting performance in critical environments.

---

Available Dimensions

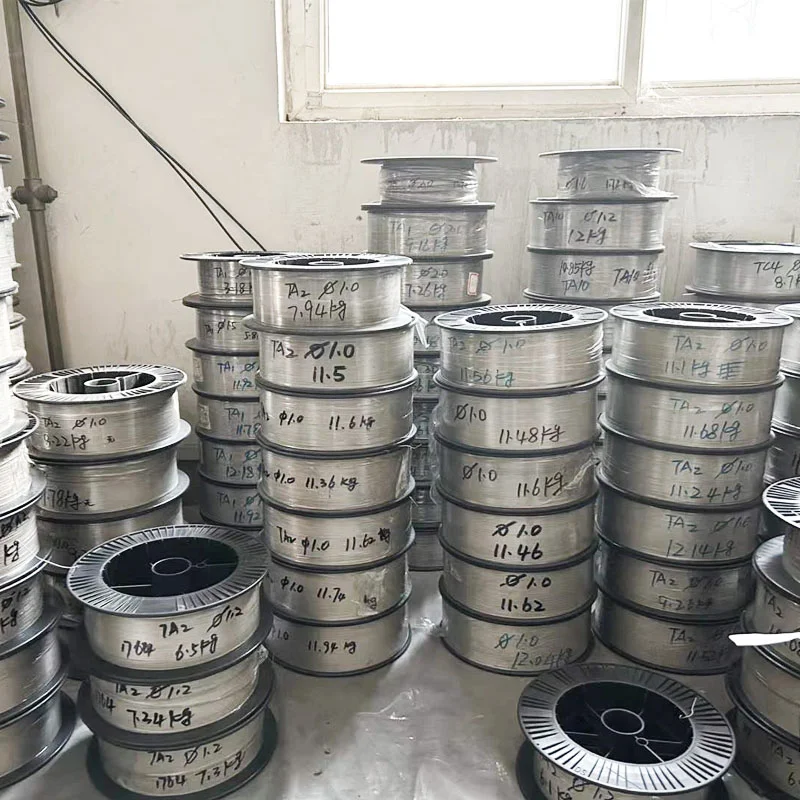

We offer titanium wire in a comprehensive range of sizes to meet diverse application needs. Our products can be supplied in coils, on spools, or as straightened and cut lengths.

• Diameter Range: 0.1 mm to 7.0 mm (0.004” to 0.276”)
• Tolerances: Precision tolerances are available upon request.
• Finishes: Bright annealed, matte, or pickled finish.

Please contact our sales team for custom dimensions or specific finishing requirements.

---

Common Titanium Wire Grades

We supply a variety of commercially pure (CP) and alloyed titanium grades. The table below outlines the most common grades and their primary characteristics.

Grade	Common Name(s)	Key Characteristics & Features	Typical Applications
Grade 1	CP Ti Grade 1	Highest purity, lowest strength, best ductility and formability. Excellent corrosion resistance.	Fine wire mesh, chemical processing anodes, architectural elements, medical implants where high formability is needed.
Grade 2	CP Ti Grade 2	The most widely used “workhorse” CP grade. A great balance of strength, ductility, and weldability.	Industrial fasteners, heat exchangers, piping systems, welding filler wire, eyeglass frames.
Grade 5	Ti-6Al-4V	The most common titanium alloy. High strength, low weight, good fabricability, and excellent corrosion resistance.	Aerospace structural components, high-performance engine parts, surgical implants, high-strength fasteners, and springs.
Grade 7	Ti-0.2Pd	Mechanically identical to Grade 2 but with enhanced corrosion resistance due to the addition of palladium.	Chemical processing equipment, especially in acidic chloride environments where crevice corrosion is a concern.
Grade 23	Ti-6Al-4V ELI	Extra Low Interstitial version of Grade 5. Superior ductility and fracture toughness. Excellent biocompatibility.	Dental and medical implants, surgical staples, orthodontic wires, bone fixation devices, and fracture plates.

---

Example Applications of Titanium Wires

The unique properties of titanium wire make it the material of choice across a wide spectrum of advanced industries.

Medical & Dental

• Surgical Implants: Used for bone pins, screws, and plates due to its biocompatibility and ability to osseointegrate.
• Orthodontic Wires: Its shape memory and elasticity are ideal for dental braces (archwires).
• Pacemaker Leads: Its corrosion resistance and fatigue strength are critical for long-term implantation.
• Surgical Staples & Sutures: Fine wires are used for closing wounds and in microsurgery.

Aerospace & Defense

• Welding Filler Material: Used to weld titanium alloy components for airframes and engines.
• High-Strength Fasteners: Critical bolts, screws, and rivets where weight savings are paramount.
• Springs & Safety Wiring: Used in high-temperature and high-stress applications where steel would fail or be too heavy.
• Control Linkages: Its rigidity and low weight improve the responsiveness of flight control systems.

Industrial & Chemical Processing

• Woven Wire Mesh: Used for filters, screens, and catalyst support in corrosive chemical streams.
• Heating Elements: Its stability at elevated temperatures makes it suitable for certain industrial heating applications.
• Hangers & Racks for Anodizing: Its resistance to acidic environments makes it perfect for holding parts during surface treatment processes like anodizing and electroplating.

Consumer & Sporting Goods

• Eyeglass Frames: Lightweight, hypoallergenic, and strong, offering superior comfort and durability.
• High-Performance Bicycle Spokes: Reduces rotational weight for faster acceleration and better handling.
• Jewelry: Used for rings, bracelets, and earrings due to its hypoallergenic nature, light weight, and modern look.
• Fishing Leaders: High-strength, corrosion-proof wire for saltwater big-game fishing.
