A Stronger Titanium-Base Bond Test Is Not Permission to Over-Blast
A BMC Oral Health study published on 2026-08-15 tested how titanium-base roughness and a circumferential groove affected the adhesive retention of two-piece hybrid abutment crowns. The researchers used 90 Ti-bases, 45 zirconia crowns and 45 PICN crowns, arranged in 6 groups (N=15) (paper).
The headline result appears simple. Against the 50 μm/1.0 bar alumina-blasted control, the rougher 250 μm/2.0 bar Ti-base protocol raised mean pull-off force from 1085 ± 79 N to 1298 ± 98 N for zirconia and from 664 ± 68 N to 744 ± 64 N for PICN. Yet the paper’s useful procurement lesson is not “blast harder.” It is that retention belongs to a controlled system window, and one stronger laboratory result cannot overrule fit, contamination, connection integrity, manufacturer instructions or clinical validation.
The Study Separates Roughness From Added Geometry
Each control used material-specific conditioning. Ti-bases and zirconia crown interiors were blasted with 50 μm/1.0 bar alumina and treated with the relevant primer; PICN interiors received their prescribed etch and primer. The researchers then changed either the internal crown geometry by adding a continuous circumferential groove or the Ti-base blasting protocol by using 250 μm/2.0 bar alumina.
The groove did not add retention in this design. Mean pull-off force fell to 1017 ± 65 N for zirconia and 438 ± 48 N for PICN. The result matters because it shows that two features described as “more retentive” are not automatically additive. A groove can change cement volume, stress distribution, wall thickness and crack paths; its effect belongs to the full crown–cement–base geometry.
The coarse blasting groups moved in the opposite direction and produced higher pull-off forces. That supports further investigation of Ti-base topography. It does not establish a universal preparation recipe, because the result remains tied to the tested bases, crown materials, primers, cementation steps, thermocycling and pull-off method.
Higher Pull-Off Force Is Not a Release Authorization
The authors explicitly discuss why the higher value cannot be converted directly into unrestricted clinical practice. More aggressive blasting may remove more titanium and disturb a cement gap or connection geometry controlled in micrometres. High-energy particles may become embedded in the relatively soft titanium surface. Improper handling may damage implant-side connection or anti-rotation features.
There is also a supplier and warranty boundary. The paper notes that many manufacturers recommend no more than 2.0 bar with 50 μm alumina for Ti-base preparation. Moving to 250 μm/2.0 bar can therefore depart from instructions even when the laboratory pull-off number improves. A dental laboratory or device owner has to resolve validation, compatibility and warranty before changing a controlled protocol.
The evidence boundary is equally important. Specimens underwent thermocycling, but the study did not include mechanical cyclic loading. Pull-off force under a standardized laboratory setup is not a clinical decementation rate, service life or permission to change a validated device process. The work compared two restorative materials and one macroretention geometry; other ceramics, grooves and loading modes may behave differently.
Use a Six-Line Ti-Base System Window
| Control line | Question before release | Evidence to retain |
|---|---|---|
| Ti-base identity | Which base, alloy, lot and connection geometry entered the process? | Supplier record, drawing revision and lot traceability |
| Surface preparation | Which media, size, pressure, angle, distance and exposure time were used? | Calibrated equipment record and surface acceptance method |
| Crown material and geometry | Zirconia, PICN or another system; which wall and internal features? | CAD revision, material route and dimensional inspection |
| Chemistry and cementation | Which cleaning, primer, cement, mixing and cure conditions apply? | Controlled work instruction and batch records |
| Aging and failure mode | Which thermal, mechanical and environmental duty represents use? | Validation plan, failure classification and test limits |
| Change and warranty boundary | Which deviation reopens manufacturer or device-owner review? | Approved change notice, compatibility decision and release authority |

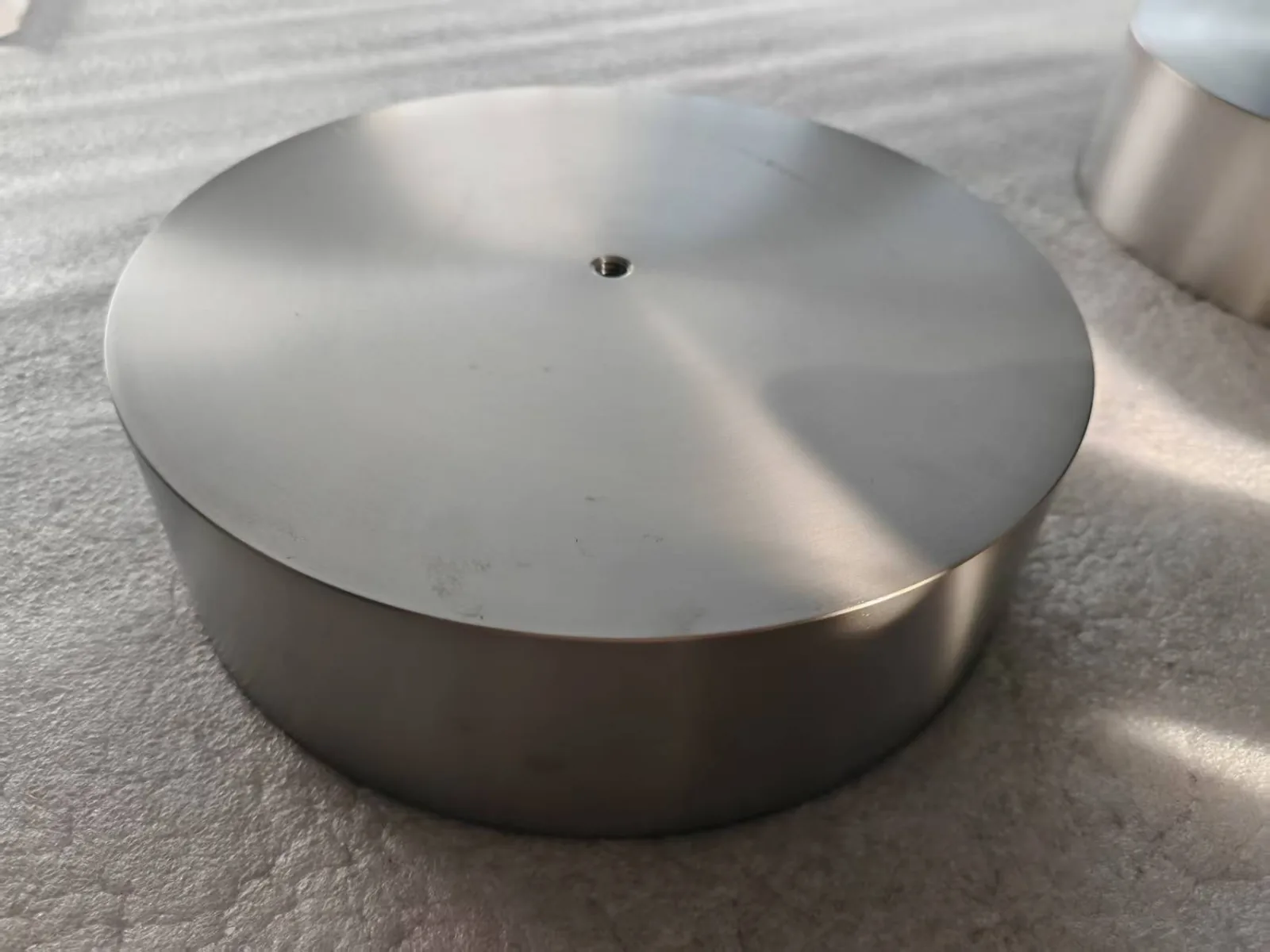

For suppliers of titanium bar or precision-machined titanium components, the broader lesson is not to sell roughness as an isolated number. The released condition links raw material, final geometry, surface process, cleanliness and inspection. A measured Ra value cannot reveal embedded media, localized over-blasting or loss of connection tolerance on its own.
The study offers a useful counterweight to intuition: the tested continuous groove reduced retention, while the rougher base raised laboratory pull-off force. The disciplined conclusion remains narrower. Explore the surface mechanism, but change a Ti-base protocol only inside a validated system window that protects fit, cleanliness, connection function, manufacturer requirements and the intended clinical evidence.
FAQ
# What did the Ti-base study test?
# Did 250 μm at 2.0 bar produce higher pull-off forces?
# Did the circumferential groove improve retention?
# Can these pull-off values predict clinical failure rates?
