GB/T 20927-2026 Moves Recycled Titanium From Scrap Label to Charge-Ready Raw Material
China published GB/T 20927-2026, Recycled titanium material, on 2026-07-02. The recommended national standard will take effect on 2027-02-01 and fully replace GB/T 20927-2007, whose English title was Scraps of titanium and titanium alloy (official standard record).
The public catalog record does not provide a clause-by-clause redline, so buyers should not invent technical changes from the title alone. But the change in framing is still commercially important. “Scrap” describes where material sits after a process. “Recycled raw material” asks whether that material has enough identity, cleanliness and acceptance evidence to enter another controlled production route.
For titanium, that is not a semantic detail. High-value return metal can be downgraded quickly when alloy grades are mixed, machining chips collect cutting fluids, tool fragments enter a batch, oxidation is uncontrolled or the source history is lost. A sustainability claim does not restore that pedigree. A melt shop needs a charge-ready evidence file.
The Standard Creates A Preparation Window
The official record confirms three hard facts: the standard was published on 2026-07-02, it becomes effective on 2027-02-01, and it replaces the 2007 standard in full. It is a recommended GB/T standard, not a claim that every global titanium purchase is automatically governed by Chinese law.
That distinction matters for export buyers. The new edition may become a contract reference for recycled titanium material handled in China, an internal acceptance baseline for processors or a supplier statement in a closed-loop program. Its use still depends on the purchase agreement, applicable regulation, customer specifications and downstream product requirements.
The seven-month interval before implementation is therefore a preparation window. Suppliers can map the new standard into incoming inspection, scrap collection, batch identification, cleaning, testing, storage and certificate language. Buyers can decide where a GB/T 20927-2026 statement is relevant and where a stricter customer or end-use rule must control.
No party should claim conformance until it has reviewed the normative text and implemented the applicable requirements. The official catalog entry supports the date, status, title and replacement relationship; it does not support fabricated limits or classifications.
Titanium Recycling Is A Pedigree Problem
The older official record classified the subject as titanium and titanium-alloy scrap (GB/T 20927-2007 record). The replacement relationship is public, but the public catalog pages do not expose enough normative text to support a detailed old-versus-new classification comparison. The durable industry question remains: how much identity and processing evidence does a given physical form need before remelting?
The U.S. Geological Survey’s titanium recycling work similarly describes titanium scrap as material that must be analyzed, classified and processed to remove impurities. It notes that turnings can carry lubricants, oxides and carbides, while clean in-house bulk scrap is easier to return to melting (USGS).
Recent technical work shows why the opportunity remains valuable. Pacific Northwest National Laboratory reported a solid-phase route that consolidated Ti-6Al-4V machining chips and extruded them into wire feedstock, while explicitly studying oxygen content, microstructure and tensile properties (PNNL). The useful lesson is not that every chip batch can become qualified wire. It is that direct recycling becomes credible only when input condition, process route and output properties are measured.
The industry mechanism is a value ladder. Titanium does not move from “waste” to “equivalent product” in one step. It moves from identified return material, through preparation and acceptance, into a defined charge or solid-state route, and then through the same product qualification needed for the intended output.
A Six-Line Scrap-To-Charge Map
A recycled titanium purchase or internal return loop should preserve six lines before the material is released to processing.
| Map line | Question to close | Evidence |
|---|---|---|
| Origin | Where and how was the return material generated? | Source site, operation, parent product, date range and custody record |
| Alloy identity | Is the grade known and segregated? | Parent heat or lot, positive material identification, chemistry screen and mixed-grade controls |
| Physical form | Is it solid, cutoff, crop, turning, chip, test piece or another form? | Batch description, size range, mass, photographs and container identity |
| Surface and contamination | What oil, oxide, coating, tool fragment, foreign metal or moisture risk exists? | Visual inspection, magnetic or other separation, cleaning record and contamination limits |
| Preparation and acceptance | What makes the batch usable by the selected process? | Sorting, cleaning, crushing or consolidation route, sampling plan, chemistry and interstitial tests |
| Melt or product allocation | Which downstream route and product family may use it? | Charge calculation, dilution plan, furnace or solid-state route, end-use restriction and final product release |
This framework creates an explicit boundary between a scrap seller’s description and a melter’s acceptance decision. It also prevents the final product from borrowing authority from the recycled-input label.
Closed-Loop Does Not Mean Same-Loop
A titanium batch can be recycled without returning to the same product class. Mixed or contaminated material may be useful in steelmaking or master-alloy production while being unsuitable for a high-integrity titanium ingot. Clean, segregated revert may enter a titanium melt route, but the resulting ingot and mill product still need chemistry, structure, mechanical properties, inspection and customer approval appropriate to the end use.
That is why “closed-loop” should be described precisely. A credible statement identifies the source material, recovery route, output form and qualification boundary. It does not imply that a machining chip has the same status as certified titanium rod, plate or forging.
The buyer insight is practical. Recycled content is an input attribute; product conformity is an output decision. The two should be connected by records, not collapsed into one marketing phrase.
What Suppliers Should Do Before The 2027 Effective Date

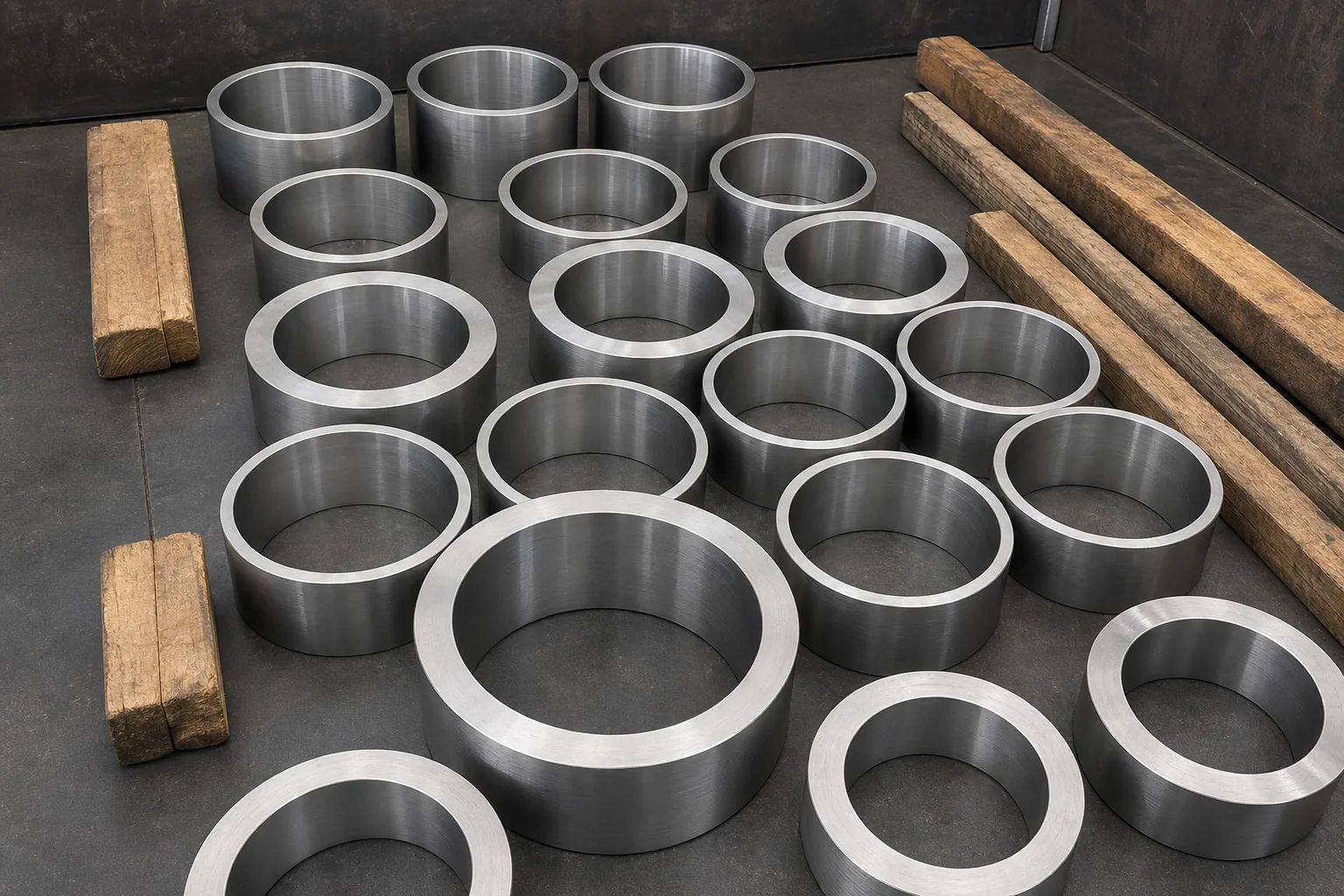

Titanium processors should begin with source segregation. Containers, travelers and digital records should retain alloy, heat or lot and generation-operation identity at the point where cutoffs or chips arise. Once material from two unknown grades is mixed, a later chemistry test may detect the problem but cannot cheaply recreate the original pedigree.
Next, suppliers should map contamination routes. Titanium CNC machining can create chips with cutting fluid, entrained tool material and a high surface-area exposure to oxygen. Hot-work crops and forged offcuts can carry scale or contaminated surface layers. Returned equipment parts may have coatings, welds, fasteners or service deposits that change their recovery route.
Finally, contract language should separate three statements: conformance of the recycled raw material, acceptance into a specified processing route, and conformance of the final titanium product. Each statement needs its own responsible party and evidence.
Global buyers sourcing from China should ask which edition controls the supplier’s statement, whether the 2027-02-01 implementation date has been reflected in procedures, and what customer-specific restrictions sit above the GB/T baseline. Suppliers outside China can still use the six-line map without claiming formal compliance to a standard they have not reviewed or contracted.
GB/T 20927-2026 is timely because titanium recycling is moving from a general resource-efficiency story toward a feedstock-control discipline. The official public record does not yet justify a clause-by-clause interpretation, and this article does not attempt one.
The defensible conclusion is narrower and more useful: recycled titanium earns raw-material status through preserved origin, alloy segregation, contamination control, preparation evidence and a defined downstream allocation. Until those lines close, “titanium scrap” is only a material description—not a release decision.
Industry FAQ
When does GB/T 20927-2026 take effect?
The official record states an effective date of 2027-02-01. It was published on 2026-07-02 and fully replaces GB/T 20927-2007.
Does the public record reveal every technical change?
No. It confirms title, status, dates and replacement, but does not provide enough normative text for a clause-by-clause redline.
What makes recycled titanium charge-ready?
Preserved origin, alloy segregation, known physical form, contamination control, documented preparation and acceptance into a defined downstream route.
Does recycled content prove final titanium product conformity?
No. Recycled content is an input attribute. The resulting ingot or product still needs the chemistry, structure, properties, inspection and approvals required for its end use.
FAQ
# When does GB/T 20927-2026 take effect?
# Does the public record reveal every technical change?
# What makes recycled titanium charge-ready?
# Does recycled content prove final titanium product conformity?
Need this material? Get a factory-direct quote.
