New Ti-2Al-2.5Zr Study Shows Why the Same Twin Can Start and Stop a Forming Crack

A study in Volume 43 (2026) of the Journal of Materials Research and Technology examines why Ti-2Al-2.5Zr can crack during large-plastic-deformation forming. Its most useful result is not a new universal forming limit. It is a two-stage fracture mechanism: microstructural features that create more crack-initiation sites do not necessarily make later crack coalescence easier.

The researchers tested the alloy under different stress states and loading directions, then examined fracture morphology and crystallography. They report that dislocation accumulation from prismatic ⟨a⟩ slip drives crack initiation at slip planes or grain boundaries. Tensile twinning can create high-angle grain boundaries and increase the density of initiation sites. Yet tensile twins can also arrest crack propagation at grain-boundary junctions, while slip and grain-rotation directions aligned with loading can help separate cracks connect.

That apparent contradiction is the industry mechanism. Forming fracture has at least two decisions—where cracks start and whether they join into a fatal path. A single elongation number or one fracture-locus value can compress those decisions into an average that misses direction and stress path.

Crack Initiation and Crack Coalescence Are Different Problems

Ti-2Al-2.5Zr is an α-titanium alloy used in piping and structural applications where corrosion resistance, strength and temperature stability matter. Its hexagonal crystal structure does not deform equally in every direction. Rolling and annealing can also leave texture, so the direction of a tube, strip or formed blank relative to its processing history affects which slip and twinning systems activate.

The new paper separates several roles. Prismatic ⟨a⟩ slip accumulates dislocations and promotes nucleation. Under shear, grain rotation can create incompatibility at grain boundaries and add more nucleation sites. Loading direction then influences the direction of slip and rotation, which can align damage and help cracks coalesce. Tensile twinning adds boundaries, but some twin-boundary junctions impede propagation (peer-reviewed study).

The conclusion is not that twinning is good or bad. Its effect depends on fracture stage and spatial arrangement. A process change that lowers the number of visible microcracks may still align the remaining cracks. Another condition may create more small cracks but interrupt the path they would need to form a through-thickness defect.

Why A Uniaxial Coupon Can Miss The Forming Path

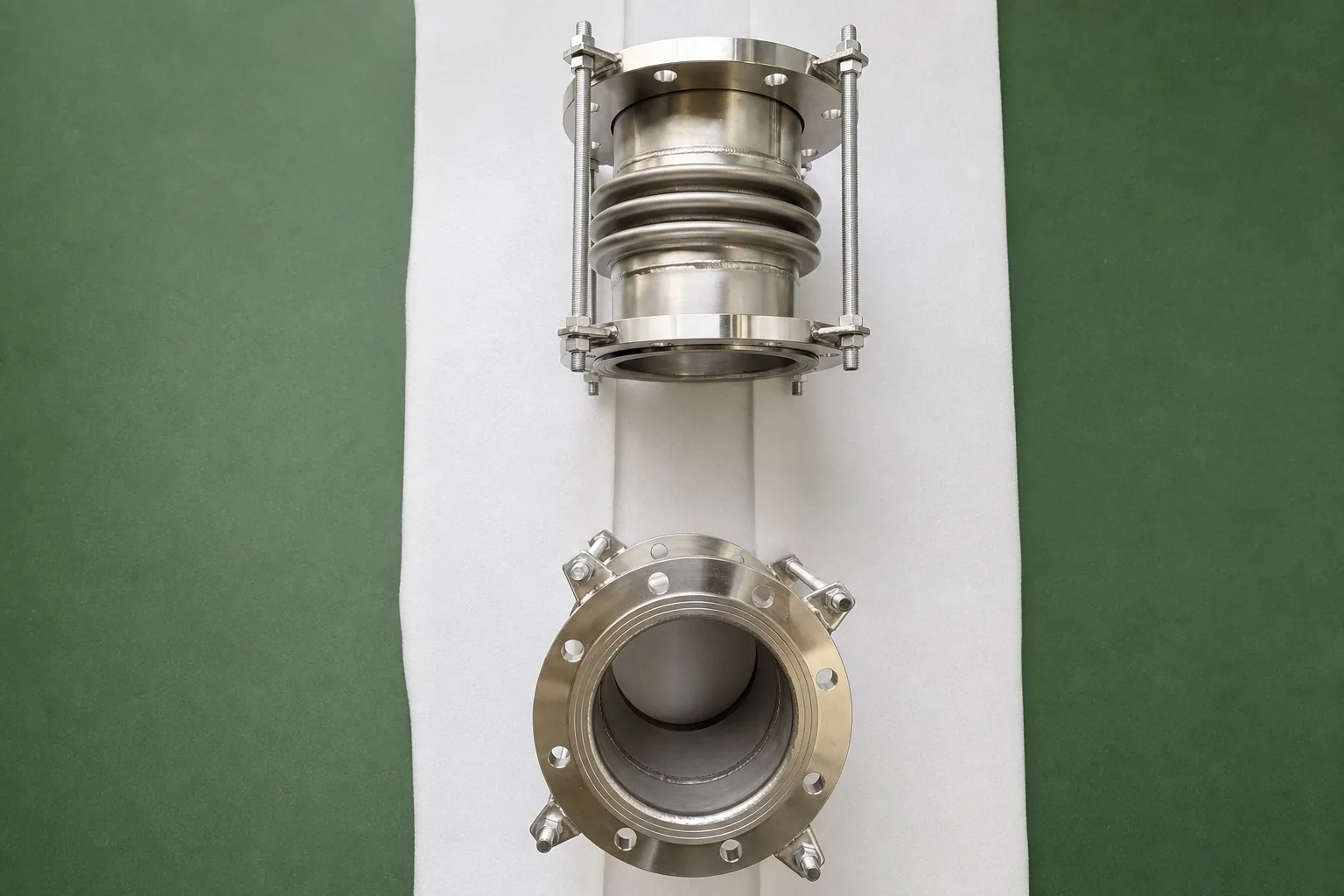

Real forming rarely follows one proportional tensile path. Tube reduction, pilgering, bending, flaring, drawing and complex sheet forming combine tension, compression and shear. Contact and geometry can rotate the principal strain direction as the operation proceeds. A coupon cut in one orientation can therefore represent only one branch of the process.

Historical Ti-2Al-2.5Zr cold-pilgering research supports the product connection: it reports non-uniform intragranular deformation and substantial twinning under the alternating stress of tube processing. The current fracture study advances the buyer question from “How much strain can the alloy take?” to “Which microscopic mode operates at each stress-path stage, and does it start, align or arrest damage?” (cold-pilgering study).

For buyers, the risk is path collapse. A material certificate, room-temperature tensile result and final dimensional inspection may all pass while the qualified forming route differs from production in orientation, reduction sequence, tooling contact or strain reversal. The product can then reach the same final dimensions through a different damage path.

A Five-Coordinate Forming-Fracture Path

Before releasing a heavily formed titanium product family, buyers and processors can map five coordinates.

The map does not require EBSD on every production lot. It requires development evidence strong enough to identify the controlling coordinates, followed by production controls and inspection that preserve them.

What Tube, Strip And Formed-Part Buyers Can Use Now

Buyers of titanium tubes should ask how the production route represents axial, circumferential and radial directions. For pilgered, drawn or expanded products, sampling only along the easiest tensile orientation may not cover the local shear or reversal that controls a forming defect.

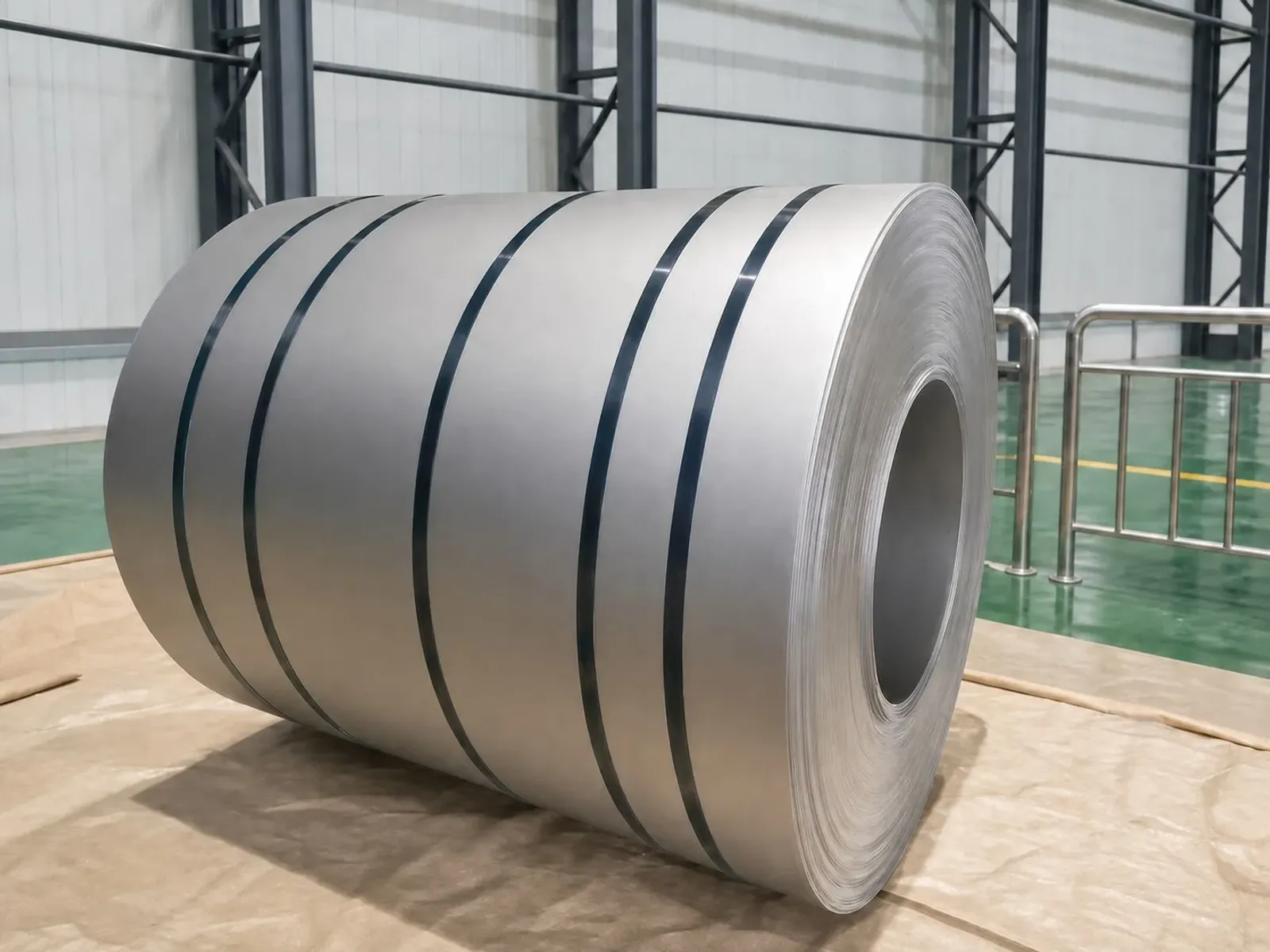

Suppliers of titanium sheet and plate should keep rolling direction and blank orientation visible through cut-to-form operations. If a drawing or forming route is qualified with one orientation, rotating nesting to improve yield can be a metallurgical change even when chemistry and thickness stay the same.

The study does not establish an acceptance limit for commercial Ti-2Al-2.5Zr products, nor does it prove that all twins will arrest cracks. It provides laboratory evidence about competing microscopic roles under defined stress states and directions. Production acceptance still needs the applicable specification, a validated route, representative testing and product-specific inspection.

The restrained conclusion is that forming cracks should not be managed through one “formability” number. Ti-2Al-2.5Zr shows why processors must separate initiation from coalescence and keep starting texture, stress path, orientation, damage stage and change control connected until release.
